Product Series

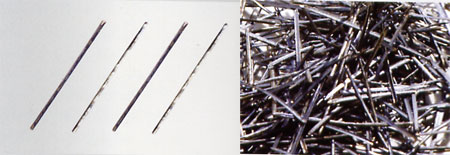

Melt extracted fibers (ML-)

Both ends flat, good dispersing performance, being applied to tunnel spraying, bridge building, and water conservancy and power projects.

Regular applied designation:
AISI 430,446,304,310,etc.

Nominal diameter x length:
0.4 x 25 /30 /35mm
0.5 x 25 /30 /35mm

กก

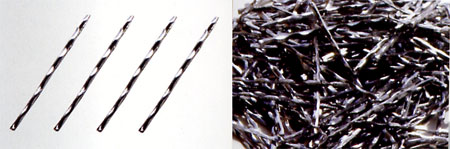

Slit sheet fibers (S-)

This sort is applied to well covers, road bridges, road surface repair, etc.

Regular applied designation:
JIS sus430, low carbon steel
scraps from automobile producing.

Nominal diameter x length:
0.5 x 6 /10 /15 /20 /25 /30 /35 /50mm

Different forms selectable:
Apparent straight, waved, pressed, etc.

กก

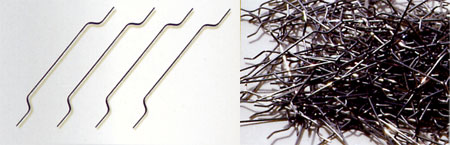

Cold drawn wire Fibers (W-)

The bow type is the recognized best shape, which bears tensile strength of 1000Mpa. It is mainly used in tunnels, road bridges, water conservancy, power projects, buildings and military projects, etc.

Regular applied designation:
AISI 304,310,330,or low carbon steel wires
cold drawn

Nominal diameter x length:
0.4 x 6 /10 /15 /20 /25 /30 /35 /50mm
0.5 x 6 /10 /15 /20 /25 /30 /35 /50mm
0.6 x 6 /10 /15 /20 /25 /30 /35 /50mm

Different forms selectable:
End hooked, wave curing surface, apparent straight, etc.

กก



Different lengths and nominal diameters are available at clients' demand.
Alloy components are adjustable at clients' demand.
